🛣[Deep Learning]Stanford CS224w:Machine Learning with Graphs

想说的话🎇

🔝课程网站：http://web.stanford.edu/class/cs224w/

👀一些资源: B站精讲：https://www.bilibili.com/video/BV1pR4y1S7GA/?spm_id_from=333.337.search-card.all.click&vd_source=280e4970f2995a05fdeab972a42bfdd0

https://github.com/TommyZihao/zihao_course/tree/main/CS224W

Slides: http://web.stanford.edu/class/cs224w/slides

Optional Readings：

DeepWalk: Online Learning of Social Representations

node2vec: Scalable Feature Learning for Networks

Network Embedding as Matrix Factorization

NetworkX提供了多个类来存储不同类型的图，如有向图和无向图。它还提供了用于创建多重图（有向图和无向图）的类。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
import networkx as nx

# Create an undirected graph G
G = nx.Graph()
print(G.is_directed())  # False

# Create a directed graph H
H = nx.DiGraph()
print(H.is_directed())  # True

# Add graph level attribute
G.graph["Name"] = "Bar"
print(G.graph)

Node

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
# Add one node with node level attributes
G.add_node(0, feature=5, label=1)

# Get attributes of the node 0
node_0_attr = G.nodes[0] # {'feature': 5, 'label': 1}

G.nodes(data=True) # {0: {'feature': 5, 'label': 1}}

G.add_nodes_from([
  (1, {"feature": 1, "label": 1}),
  (2, {"feature": 2, "label": 2})
]) # add more nodes through list

# Get number of nodes
num_nodes = G.number_of_nodes()

# Loop through all nodes
for node in G.nodes(data=True):
    print(node)

Edge

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
# Add one edge with edge weight
G.add_edge(0, 1, weight=0.5)

G.add_edges_from([
  (1, 2, {"weight": 0.3}),
  (2, 0, {"weight": 0.1})
])

for edge in G.edges():
  print(edge)

num_edges = G.number_of_edges()

nx.draw(G, with_labels=True)

nodes'relation

1
2
3
4
5
6
G.degree[1] # node's degree
G.degree() # [(0, 2), (1, 2), (2, 2)]

for neighbor in G.neighbors(1):
    print(neighbor)
# 0 2

PyTorch Geometric (PyG)是关于Pytorch的图深度学习拓展库。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

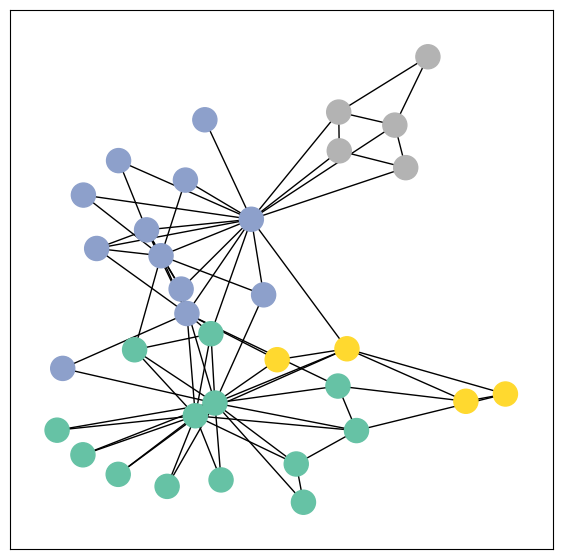

import torch
from torch_geometric.datasets import KarateClub
# 空手道俱乐部的 34 名成员的社交网络

dataset = KarateClub()
print(len(dataset), dataset.num_features, dataset.num_classes) # 1 34 4
# 数据集包含的图数，节点表示向量的维度，节点类别数

graph = dataset[0]
print(graph)
# Data(x=[34, 34], edge_index=[2, 156], y=[34], train_mask=[34])
# train_mask 附加属性，描述了我们已经知道哪些节点的社区分配
print(graph.num_nodes, graph.num_edges) # 34 156

graph.has_isolated_nodes() # False
graph.has_self_loops() # False
graph.is_undirected() # True

Node Embeddings

在传统机器学习流程中，我们需要对原始数据进行特征工程feature engineering（比如提取特征等），但是现在我们使用表示学习representation learning的方式来自动学习到数据的特征，直接应用于下游预测任务。

图的表示学习：Map nodes into an embedding space, similarity of embeddings between nodes indicates their similarity in the network.For exmaple : Both nodes are close to each other(connected by an edge).

we assume an graph \(G\): \(V\) is the vertex set and \(A\) is the adjacency matrix (assume binary).

the adjacency matrix(邻接矩阵): 表示顶点之间相邻关系的矩阵，若两个顶点相邻，则对应位置的值为1，否则为0。

Our goal is to encode nodes making the similarity in the embedding space reflect the similarity in the graph.

So the definition of similarity function is the key(a measure of similarity in the original network).

\[ similarity(u,v) \approx \mathbf{z}_v^T \mathbf{z}_u \]

Encoder: maps each node to a low-dimensional vector \(\mathbf{z}_v\).we assume \(Z \in \mathbb{R}^{d \times |V|}\) as the matrix of embeddings and \(v \in \mathbb{I}^{|V|}\) as indicator vector.

\[ ENC(v) = \mathbf{z}_v \stackrel{simplest}{=} \mathbf{Z} \cdot v \]

Random Walks

\(P(v|\mathbf{z}_u)\)是从\(u\)开始随机游走能到\(v\)的概率，衡量\(u\)和\(v\)的相似度，用节点embedding向量相似性算概率。

\[ \mathbf{z}^T_u \mathbf{z}_v = \text{the probability that u and v co-occur on a random walk over the graph} \]

Why random walks?

1
2
3
4
5
- Expressivity: Flexible stochastic definition of node similarity that incorporates both local and higher-order neighborhood information

- Idea: if random walk starting from node 𝒖 visits 𝒗 with high probability, 𝒖 and 𝒗 are similar (high-order multi-hop information)

- Efficiency: Do not need to consider all node pairs when training; only need to consider pairs that co-occur on random walks

The definition of nearby nodes and our goal to learn a mapping:

  • \(N_R(u)\): neighbourhood of \(u\) which can be obtained by random walk

  • \(f:u → \mathbb{R}^d:f(u)=\mathbf{z}_u\)

  • Log-likelihood objective:

    $\mathop{\arg\max}\limits_{z} \mathop{\sum}\limits_{u \in V} \log P(N_R(u) | \mathbf{z}_u) $

    Equivalently,

    \(\mathop{\arg\min}\limits_{z} ℒ = \mathop{\sum}\limits_{u \in V} \mathop{\sum}\limits_{v \in N_R(u)} - \log P(v | \mathbf{z}_u)\)

    使相邻的nodes之间的相似度最大化

  • Parameterize \(P(v|\mathbf{z}_u)\) as a softmax function:

    \[ P(v|\mathbf{z}_u) = \frac{\exp(\mathbf{z}_u^T \mathbf{z}_v)}{\sum_{n \in V} \exp(\mathbf{z}_{u}^T \mathbf{z}_n)} \]

so,the log-likelihood objective can transfer to:

\[ ℒ = \mathop{\sum}\limits_{u \in V} \mathop{\sum}\limits_{v \in N_R(u)} - \log \frac{\exp(\mathbf{z}_u^T \mathbf{z}_v)}{\sum_{n \in V} \exp(\mathbf{z}_{u}^T \mathbf{z}_n)} \]

Obviously \(O(|V|^2)\) complexity, doing this naively is too expensive.

层次Softmax（Hierarchical Softmax）优化算法，避免计算所有词的softmax

上述的随机游走策略是完全随机的，固定长度的游走，是否需要改进？

DeepWalk：RandWalk + Skip-Gram

Code：https://github.com/phanein/deepwalk

DeepWalk将图数据与自然语言处理技术（Word2Vec）相结合，通过随机游走将图结构转化为节点序列，然后使用Skip-Gram模型训练词嵌入，用于学习网络中顶点的潜在表示。

①从网络中的每个节点开始分别进行RandomWalk采样，得到局部相关联的训练数据；

②对采样数据进行SkipGram训练，将离散的网络节点表示成向量化，最大化节点共现，使用Hierarchical Softmax来做超大规模分类的分类器

Node2Vec：Biased Walks

Code：https://github.com/aditya-grover/node2vec

Node2Vec和随机游走的区别是如何定义相邻节点集——以及如何定义随机游走的策略(偏随机游走)

  • BFS：节点功能角色structural equivalence

  • DFS：同质社群homophily

Node2Vec gives two parameters to control the random walk:

  • Return parameter \(p\): probability of returning to the previous node

  • In-out parameter \(q\): the “ratio” of BFS vs. DFS

引入这两个超参数\(p，q\)，来控制随机游走的策略。假设当前随机游走经过边\((t,v)\)到达节点\(v\)。则转移策略遵循以下公式：\(\pi_{vx}=\alpha_{pq}(t,x) \cdot w_{vx}\)，转移策略为\(\alpha_{pq}(t,x)\)，\(w_vx\)是节点\(v\)与\(x\)之间的边权。\(d_{tx}\)为节点\(t\)和\(x\)之间的最短路径距离：

\[ \alpha_{pq}(t,x) = \begin{cases} \frac{1}{p}, & if \ \ d_{tx}=0 .\\ 1, & if \ \ d_{tx}=1 .\\ \frac{1}{q}, & if \ \ d_{tx}=2 .\\ \end{cases} \]

Core idea: Embedding nodes so that distances in embedding space reflect node similarities in the original network.

Alias采样

Node2vecWalk中不再是随机抽取邻接点，而是按概率抽取。Alias的核心思想是将一个非均匀分布转化为多个均匀分布的组合，能够加快采样速度，初始化后的采样时间复杂度为\(O(1)\)，需要存储accepet与alias两个数组，空间复杂度为\(O(2N)\)。

给定如下离散概率分布，有\(N\)个可能发生的事件。每列矩形面积表示该事件发生的概率，柱状图中所有矩形的面积之和为1。

再根据这个矩形，转换成相应的Accept表和Alias表。

将每个事件的发生的概率乘以\(N\)，此时会有部分矩形的面积大于1，部分矩形的面积小于1。切割面积大于1的矩形，填补到面积小于1的矩形上，并且每一列至多由两个事件的矩形构成，最终组成一个面积为\(1 \times N\)的矩形。

首先从\(1\)~\(N\)随机生成一个整数i，决定从\(1 \times N\)矩形中选择第几列，再生成一个均匀随机数\(u \in (0,1)\)，若若u < Accept[i]，则采样i对应的事件，否则采样Alias[i]。

因为该采样过程不需要根据随机概率在区分度为\(N\)的线段中寻找，只需要2选1，所以复杂度降低至\(O(1)\)，这也是其优于传统采样的原因。

Matrix Factorization

在Deepwalk和Node2Vec中，我们通过随机游走得到节点序列，使得节点相似度（node similarity）的定义更加复杂

Limitations

  • 无法立刻泛化到新加入的节点，无法处理动态网络（Cannot obtain embeddings for nodes not in the training set. Cannot apply to new graphs, evolving graphs）

  • Cannot capture structural similarity

  • 仅仅使用了节点之间的连接信息(Cannot utilize node, edge and graph features)

Embedding Entire Graphs

The Goal: Embed a subgraph(子图) \(G\) into a low-dimensional space \(\mathbb{R}^d\)

  • Approach 1: 直接对所有节点键入求和/平均
\[ z_G = \sum_{v \in G} z_v \]
  • Approach 2: 引入一个虚拟节点（virtual node），求出虚拟节点的嵌入来代替子图的嵌入

  • Approach 3: Anonymous Walks(匿名随机游走)
