🛣[Deep Learning]Stanford CS224w:Machine Learning with Graphs


想说的话🎇

🔝课程网站:http://web.stanford.edu/class/cs224w/

👀一些资源: B站精讲:https://www.bilibili.com/video/BV1pR4y1S7GA/?spm_id_from=333.337.search-card.all.click&vd_source=280e4970f2995a05fdeab972a42bfdd0

https://github.com/TommyZihao/zihao_course/tree/main/CS224W

Slides: http://web.stanford.edu/class/cs224w/slides

Heterogeneous Message

Message function: \(\mathbf{m}_u^{(l)} = MSG_r^{(l)} (\mathbf{h}_u^{(l-1)}), \ r=(u,e,v)\)

Observation: A node could receive multiple types of messages. Num of message type = Num of relation type.

\(r=(u,e,v)\) is the relation type between node \(u\) that sends the message, edge type \(e\) , and node \(v\) that receive the message.

Heterogeneous Aggregation

Observation: Each node could receive multiple types of messages from its neighbors, and multiple neighbors may belong to each message type.

\[ h_v^{(l)} = AGG^{(l)}_{all} \Big( AGG^{(l)}_r (\{ \mathbf{m}^{(l)}_u, u \in N_r(v)\}) \Big) \]
  • \(AGG^{(l)}_r\):aggregate the messages that belongs to the relation type

  • \(AGG^{(l)}_{all}\):aggregate across the edge types

Heterogeneous Graphs Transformer(HGT)

Innovation: Decompose heterogeneous graph to Node-type and edge-type dependent attention mechanism

\[ \begin{aligned} AttenHead^i (s,e,t) =& (K^i(s) W^{Att}_{\phi(e)} Q^i(t)^T) \\ K^i(s) = KLinear^i_{\tau(s)} &(H^{(l-1)[s]}) \\ Q^i(t) = QLinear^i_{\tau(t)} &(H^{(l-1)[t]}) \\ \end{aligned} \]

Each relation \((Type(s), Relation(e), Type(t))\) has a distinct set of projection weights

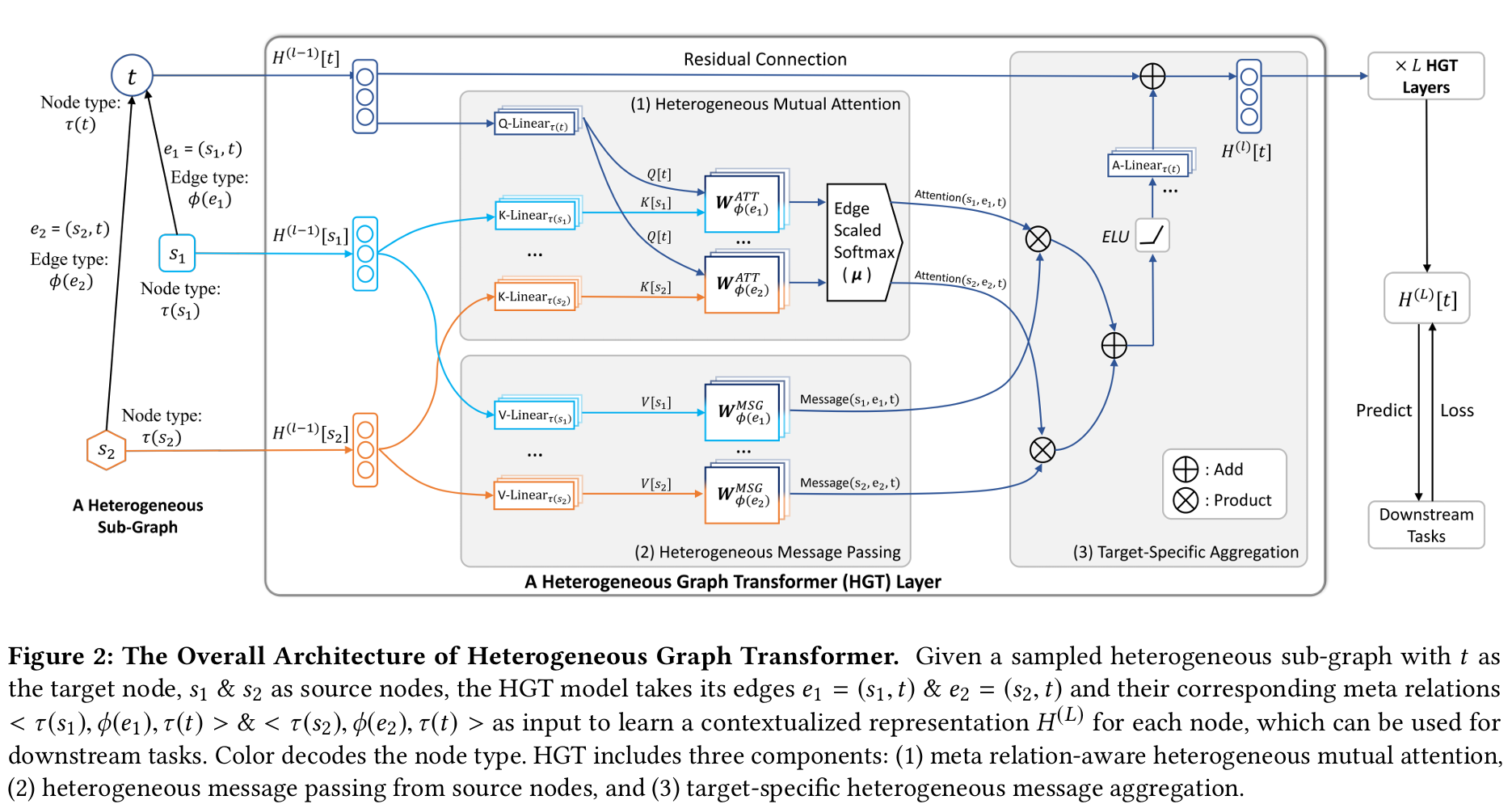

Understanding Heterogeneous Graph Transformer

阅读地址:Heterogeneous Graph Transformer

回顾GAT,其假设所有的节点拥有相同的特征分布(使用了同一个权重矩阵\(W\)),但对于异质图来说,不同类型的节点拥有不同的特征分布,因此需要为不同类型的节点使用不同的权重矩阵\(W\)

因此,该论文设计了Heterogeneous Mutual Attention机制。设定一个目标节点\(t\),以及其属于不同分布的所有邻居\(s \in N(t)\),我们希望根据节点之间的元关系来计算相互注意力\((\tau(s), \phi(e), \tau(t))\)三元组。

\[ \begin{aligned} \text{Attention}_{HGT} (s,e,t)&= Softmax_{\forall s \in N(t)} \Big( ||_{i\in [1,h]} \text{Att-head}^i (s,e,t) \Big) \\ \text{Att-head}^i (s,e,t) &= (K^i(s) W^{Att}_{\phi(e)} Q^i(t)^T) \cdot \frac{\mu_{<\tau(s), \phi(e), \tau(t)>}}{\sqrt{d}} \\ K^i(s) &= \text{K-Linear}^i_{\tau(s)} &(H^{(l-1)[s]}) \\ Q^i(t) &= \text{Q-Linear}^i_{\tau(t)} &(H^{(l-1)[t]}) \\ \end{aligned} \]

对于第i个注意力头\(\text{Att-head}^i (s,e,t)\),我们使用线性投影\(\text{K-Linear}_{\tau(s)}^i\)\(\tau(s)\)类型的源节点\(s\)投影到\(i\)-th \(Key\)向量\(K^i(s)\)\(\mathbb{R}^d \rightarrow \mathbb{R}^{\frac{d}{h}}\),其中\(h\)是注意力头的数量,\(\frac{d}{h}\)是每个头的向量表示。

每种类型\(\tau(s)\)的节点都有一个唯一的线性投影\(\text{Linear}_{\tau(s)}^i\)来最大限度地建模分布差异。

异构图的一个独特特征是节点类型对之间可能存在不同的边关系,因此我们为每个边类型\(\phi(e)\)定义一个投影矩阵\(W^{Att}_{\phi(e)} \in \mathbb{R}^{\frac{d}{h} \times \frac{d}{h}}\)

并且,由于并非所有的关系连接对目标节点的贡献相同,因此我们添加一个先验张量(prior tensor)\(\mu \in \mathbb{R}^{|\mathcal{A}| \times |\mathcal{R}| \times |\mathcal{A}|}\),来表示每个元关系三元组的一般意义,作为对注意力的自适应缩放。

最后,我们将\(h\)个注意力头连接在一起以获得每个节点对的注意力向量。对于每个目标节点\(t\),我们从其邻居\(N (t)\)中收集所有注意力向量并进行softmax,有\(\sum_{\forall s \in N(t)} \text{Attention}_{HGT} (s,e,t) = \mathbf{1}_{h \times 1}\)

\[ \text{Message}_{HGT} (s,e,t) = ||_{i\in [1,h]} \text{MSG-head}^i (s,e,t) \\ \text{MSG-head}^i (s,e,t) = \text{M-Linear}^i_{\tau(t)} (H^{(l-1)}[s]) W^{MSG}_{\phi(e)} \]

其中\(\text{M-Linear}^i_{\tau(t)}: \ \mathbb{R}^d \rightarrow \mathbb{R}^{\frac{d}{h}}\)是目标节点\(t\)的线性投影,\(W^{MSG}_{\phi(e)} \in \mathbb{R}^{\frac{d}{h} \times \frac{d}{h}}\)是边类型\(\phi(e)\)的投影矩阵。最后连接所有\(h\)个消息头以获得每个节点对的消息\(\text{Message}_{HGT}(s, e, t)\)

\[ \tilde{H}^{(l)}[t] = \mathop{\oplus}\limits_{\forall s \in N(t)} (\text{Attention}_{HGT} (s,e,t) \cdot \text{Message}_{HGT} (s,e,t)) \]

这将信息聚合到来自不同特征分布的所有邻居(源节点)的目标节点\(t\)

\[ H^{(l)}[t] = \text{A-Linear}_{\tau(t)} (\sigma(\tilde{H}^{(l)}[t])) + H^{(l-1)}[t] \]

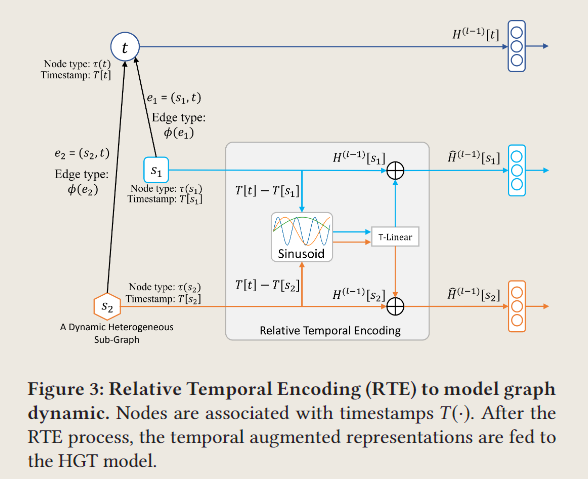

Relative Temporal Encoding

本文提出了相对时间编码 (RTE) 机制来模拟异构图中的动态依赖关系。RTE受到 Transformer的位置编码方法的启发。给定一个源节点\(s\)和一个目标节点\(t\),以及响应的时间戳\(T(s)\)\(T(t)\),我们将相对时间间隔\(\Delta T(t,s) = T(t) - T(s)\)表示为获得相对时间编码\(\text{RTE}(\Delta T(t,s))\)的索引。

\[ \begin{aligned} Base (\Delta T(t,s), 2i) &= \sin{(\Delta T(t,s) / 10000^{2i/d})} \\ Base (\Delta T(t,s), 2i+1) &= \cos{(\Delta T(t,s) / 1 0000^{(2i+1)/d})} \\ RTE(\Delta T(t,s)) &= \text{T-Linear} (Base(\Delta T_{t,s})) \\ \end{aligned} \]

最后,将相对于目标节点 t 的时间编码添加到源节点 s 的表示中:

\[ \tilde{H}^{(l-1)}[t] = H^{(l-1)}[t] + RTE(\Delta T(t,s)) \]
